Hi All
Been struggling a little with a BLtouch on a custom machine build using a Duet 2 Wifi and RRF 3 firmware.
Sometimes I know it can be frustrating just wanted to share a known good configuration here in case anyone needs some plain configuration.
Just going to post my configuration here in case others want something to reference that is working. All this is done on RRF 3

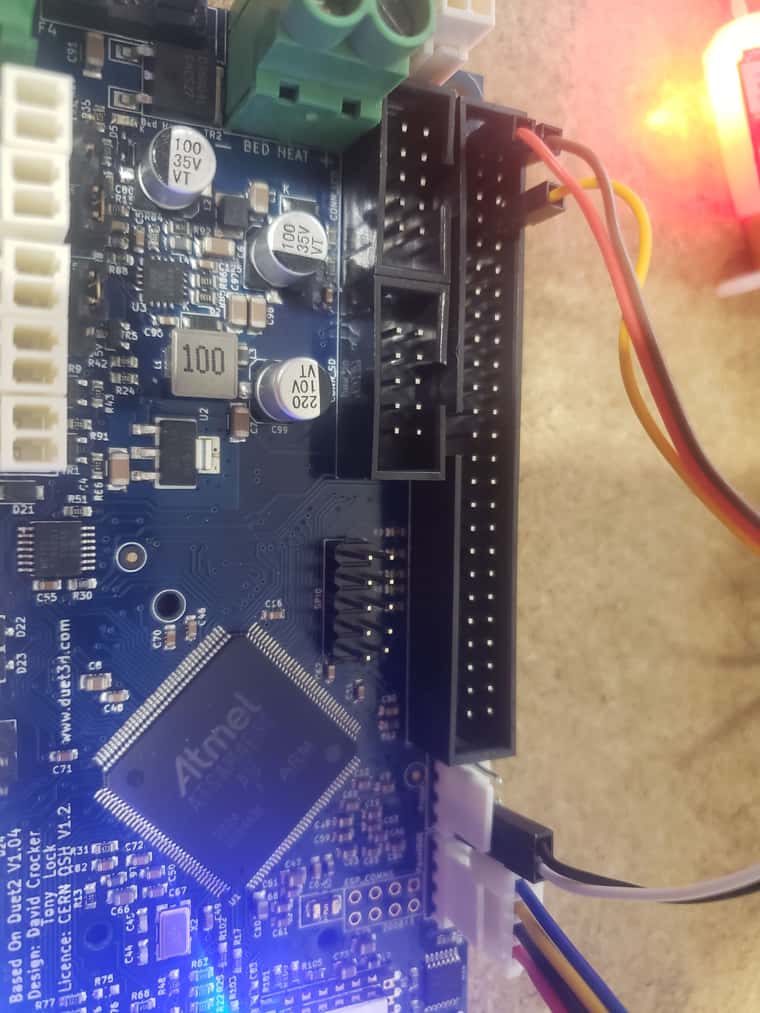

My Black and white BLtouch wires are plugged into the BLTouch plug next to the DUET screen plug, the Red and Brown wires are on pins one and 2 of the expansion connector and the SIG or yellow wire is on pin 8 of the expansion connector.
If you need any other help just let me know.
Config .g file
; Configuration file for Duet WiFi (firmware version 3)
; executed by the firmware on start-up
;
; generated by RepRapFirmware Configuration Tool v3.2.3 on Tue Mar 02 2021 18:05:15 GMT-0500 (Eastern Standard Time)
; Endstops
M574 X1 S1 P"!xstop" ; configure active-high endstop for low end on X via pin !xstop
M574 Y1 S1 P"!ystop" ; configure active-high endstop for low end on Y via pin !ystop
; Z-Probe
M950 S0 C"exp.8" ; Assign GPIO port 0 to Heater3/Pin8 on exp conn, Servo Mode
M558 P9 C"[1](http://zprobe.in/)" H5 F120 T6000 ; set Z probe type to 9 BL Touch and the dive height + speeds
G31 P500 X0 Y0 Z6.3 ; set Z probe trigger value, offset and trigger height
M557 X15:585 Y15:585 S28.5 ; define mesh grid
; deployprobe.g
; called to deploy a physical Z probe
M280 P0 S10
; homeall.g
; called to home all axes
;
; generated by RepRapFirmware Configuration Tool v3.2.3 on Tue Mar 02 2021 18:05:15 GMT-0500 (Eastern Standard Time)
G91 ; relative positioning
G1 H2 Z5 F6000 ; lift Z relative to current position
G1 H1 X-605 Y-605 F1800 ; move quickly to X and Y axis endstops and stop there (first pass)
G1 H2 X5 Y5 F6000 ; go back a few mm
G1 H1 X-605 Y-605 F360 ; move slowly to X and Y axis endstops once more (second pass)
G30
G90 ; absolute positioning
G92 Z0 ; set Z position to axis minimum (you may want to adjust this)
; homez.g
; called to home the Z axis
;
; generated by RepRapFirmware Configuration Tool v3.2.3 on Tue Mar 02 2021 18:05:15 GMT-0500 (Eastern Standard Time)
G91 ; relative positioning
G1 H2 Z5 F6000 ; lift Z relative to current position
G30
G92 Z0 ; set Z position to axis minimum (you may want to adjust this)
-
