Heated insert stand

1

This is the stand I made for inserting threaded inserts. There are dozens of these available on Thingaverse, Printables etc. so why make another. All the ones you can download require parts like extruded frames, wheels, bearings etc. All this needs , besides the printed parts, is some cord, and elastic band an a few nuts and bolts. Naturally it also needs a soldering iron with the insert bits.

It works quite well, the inserts go in straight anyway. The part that holds the soldering iron is detachable so a new one can be printed to fit a different iron. Soldering irons are between $15 and $35 (Amazon) depending on the model and heat output. Being able to use insert’s to bolt parts together is a really good addition to printing.

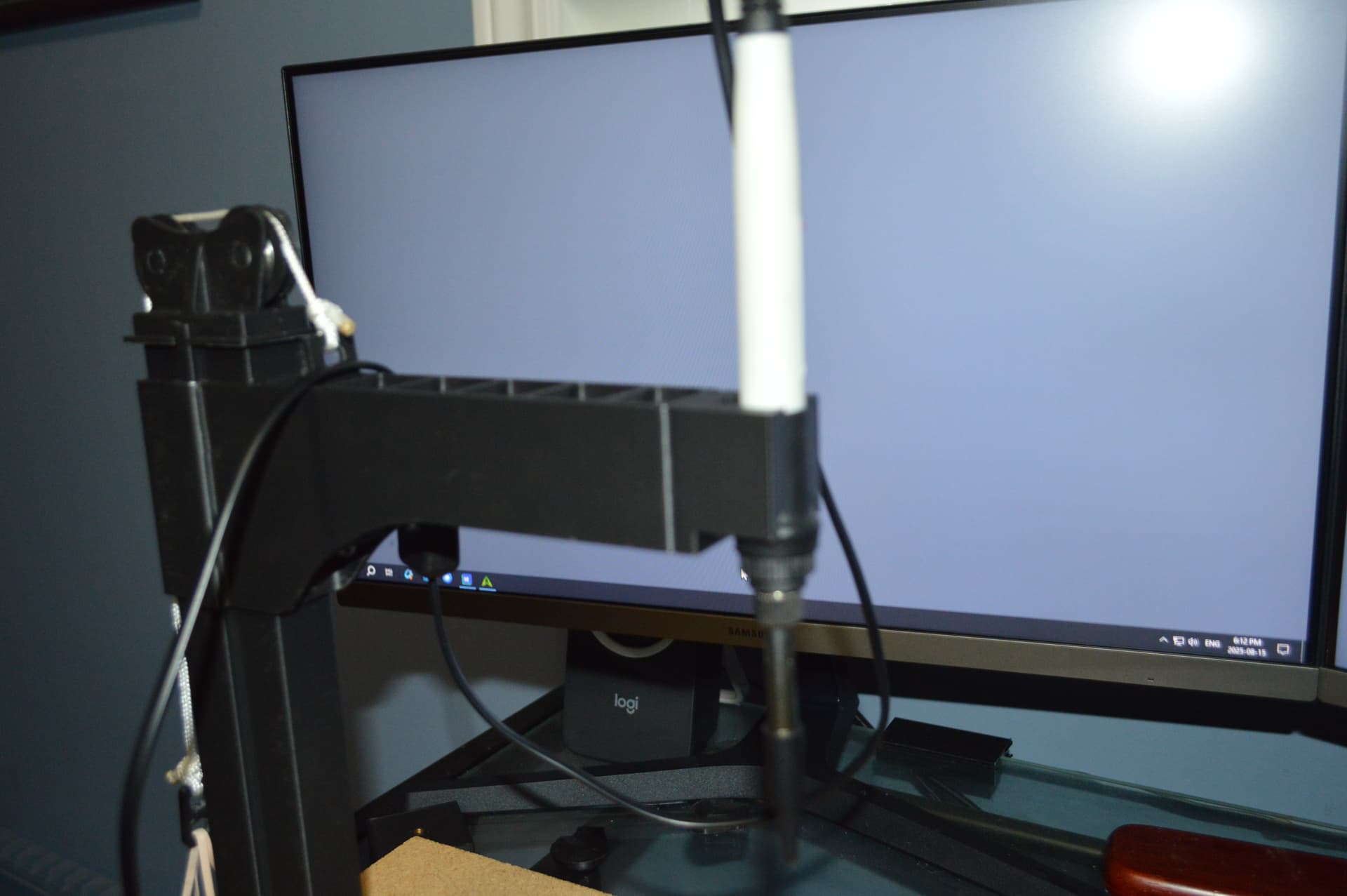

DSC_0009
DSC_00091920×1277 79.8 KB

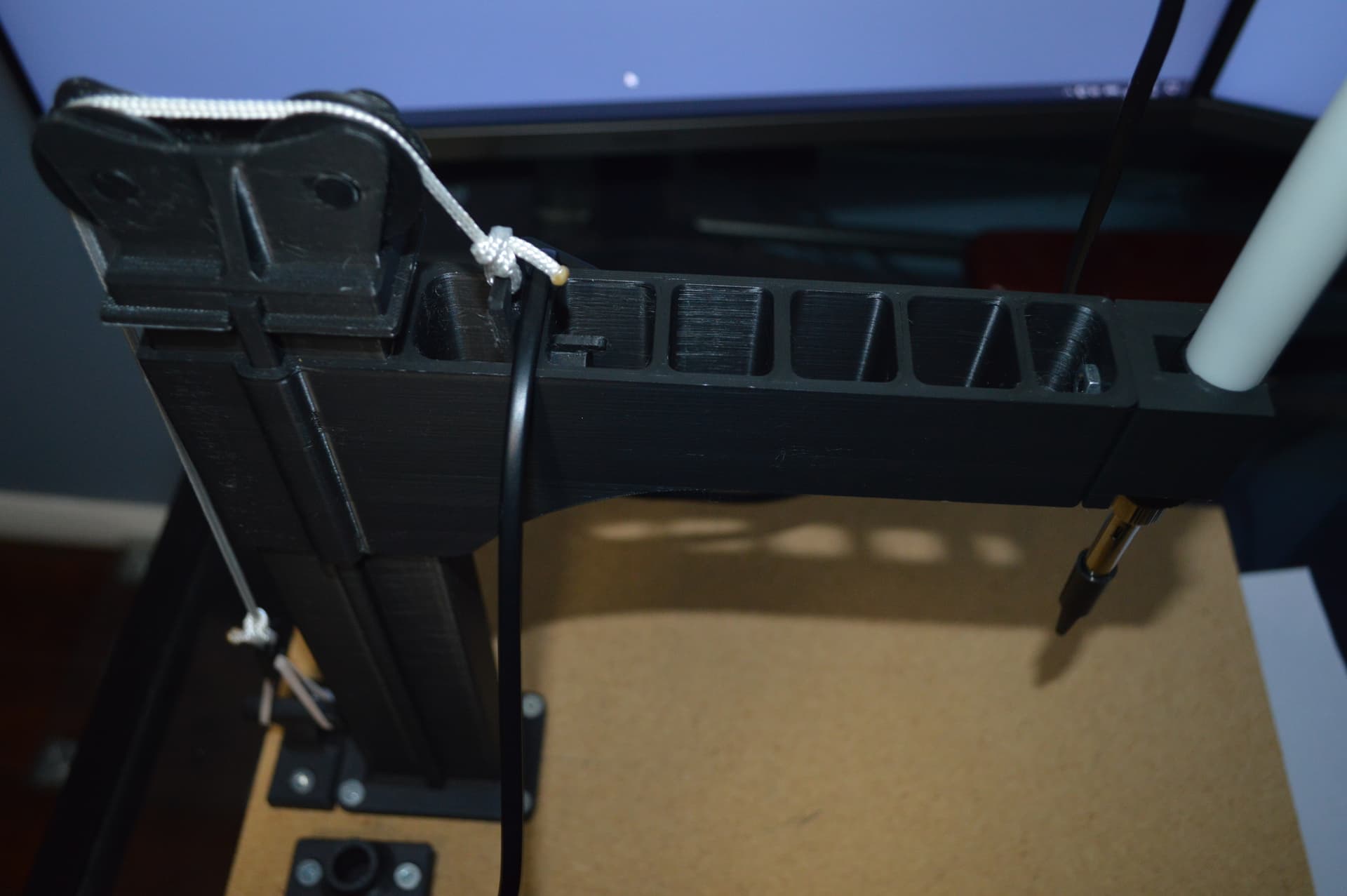

DSC_0010
DSC_00101920×1277 83.5 KB

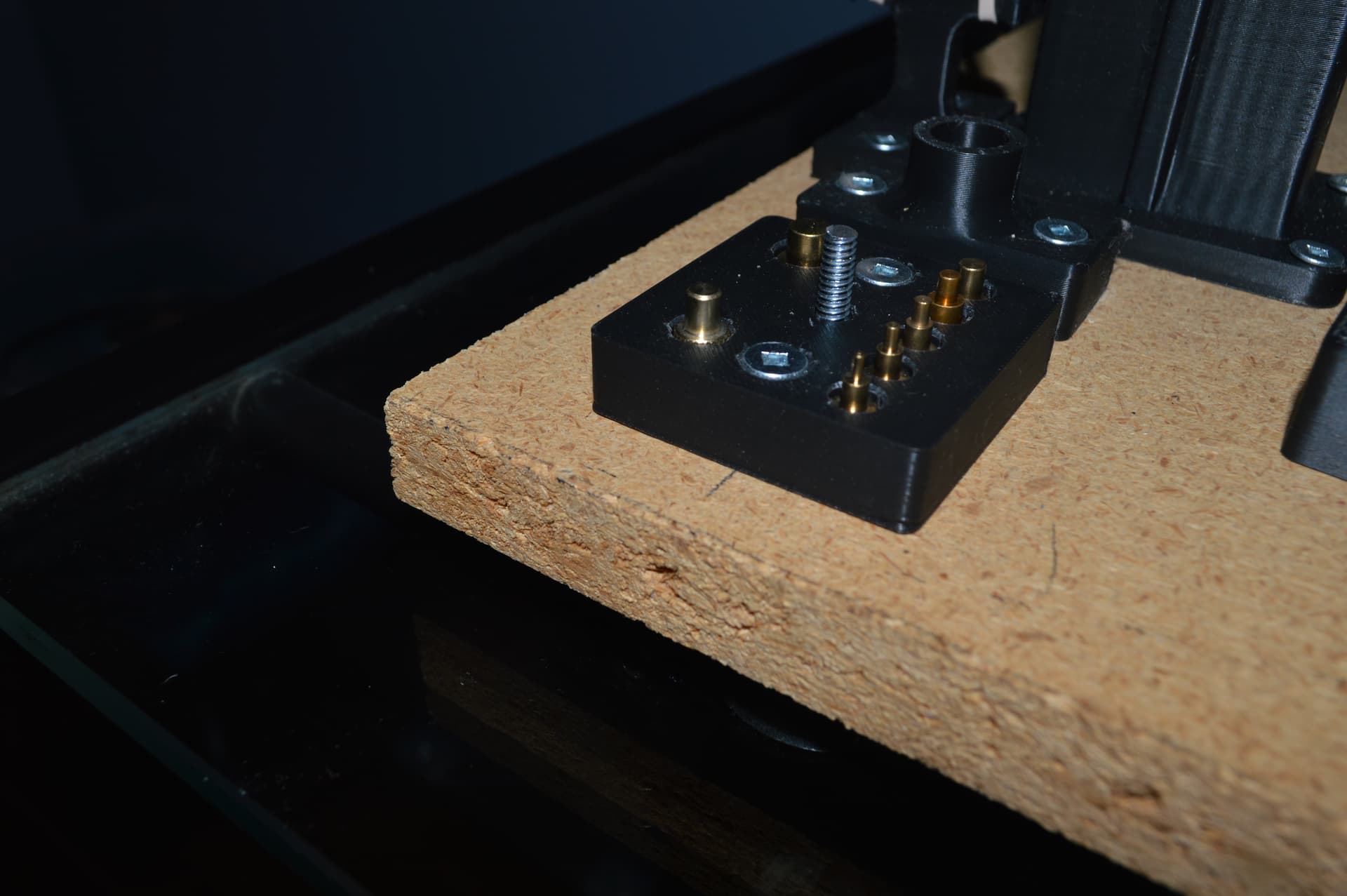

DSC_0011
DSC_00111920×1277 114 KB

2 Likes
2

I built one similar, even had the cord and counter weight. Works well.

3

I could have gone with a counterweight but didn’t. If one could find the proper spring then that would be a better option.

1 Like
4

I used 2030 channel for mine. The 3d printer parts hold the soldering iron. I found a spring that works, it connects to a pin that slides in the channel so I can adjust the pressure. I have been using it for years. works well. I use it a lot.

My advise buy good inserts that hold better!
